Datalogic Gryphon™ 4500 – Premium handheld 2D scanners designed for clinical environments with disinfectant-ready enclosures and advanced wireless technology
Datalogic Gryphon™ 4500 – Premium handheld 2D scanners designed for clinical environments with disinfectant-ready enclosures and advanced wireless technology
Couldn't load pickup availability
The Gryphon™ 4500 is a premium barcode scanner built for hospitals, labs, and patient care. Its disinfectant-ready enclosure with antimicrobial additives ensures hygiene and safety, while the 1 Megapixel imager delivers fast, accurate reads on 1D, 2D, and stacked barcodes—even from screens and medical devices. Features like Green Spot, 3GL™ feedback, and Motionix™ technology improve usability, while Bluetooth® provide flexibility and reliability for demanding healthcare workflows.
• 1 Megapixel imager ensures reliable 1D, 2D, and stacked barcode reading
• 4-dot aimer, Green Spot, and 3GL™ deliver precise targeting and feedback.
• Bluetooth® 5.0 for flexible mobility.
• Wireless charging increases reliability and reduces maintenance costs.

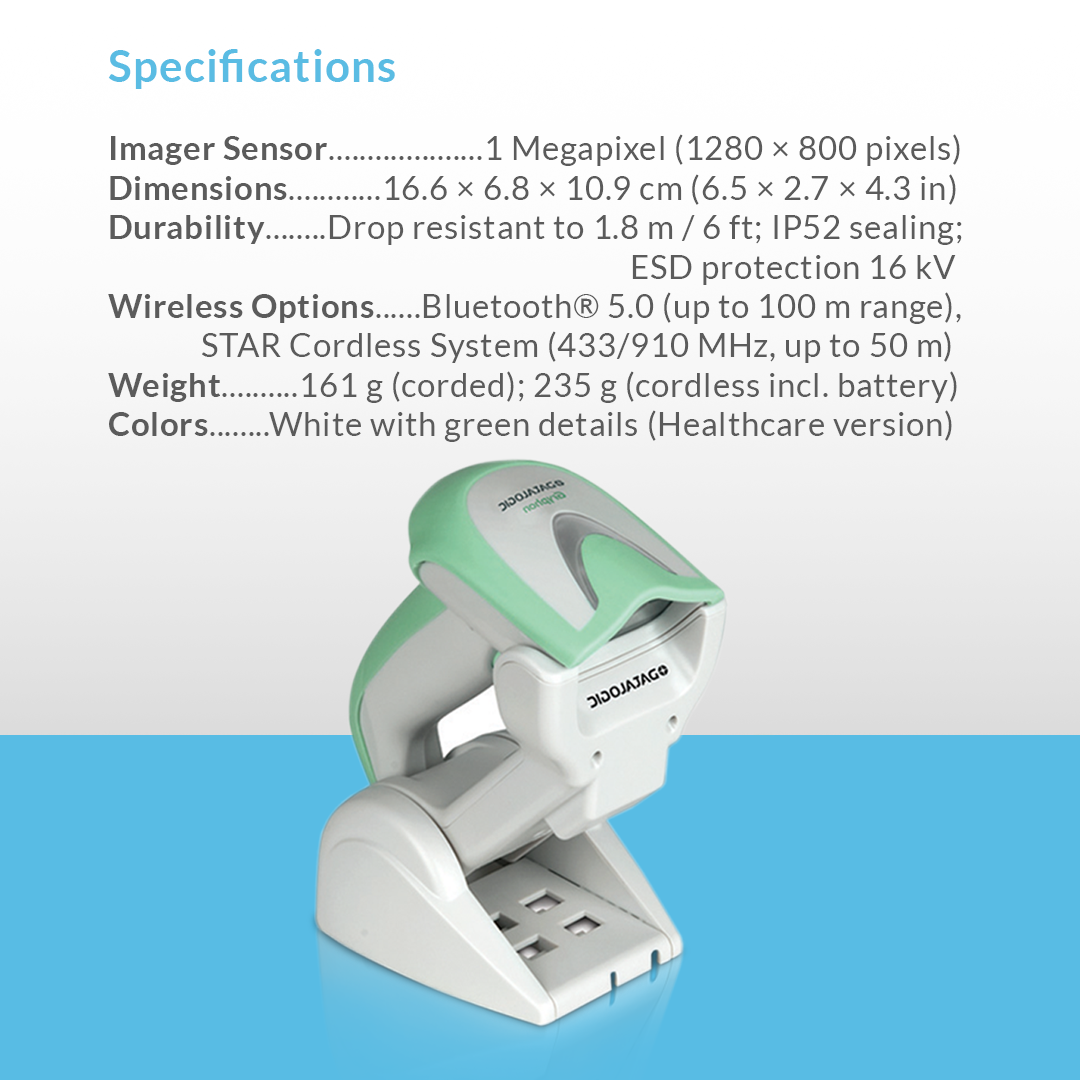

Sheet Specs
Sheet Specs
Imager Sensor: 1 Megapixel (1280 × 800 pixels)
Resolution: Up to 3 mils (1D HD), 4 mils (Data Matrix HD)
Light Source: Aiming – Red Laser 650 nm; Illumination – Warm White / Hyper Red LED
Motion Tolerance: 35 ips
Print Contrast Ratio (Min): 15%
Interfaces (Cordless): USB, USB-C, RS-232 (via cradle WLC4090/WLC4190)
Interfaces (Corded): USB-C, USB, RS-232 (depending on model)
Wireless Options: Bluetooth® 5.0 (up to 100 m range), STAR Cordless System (433/910 MHz, up to 50 m)
Battery (Cordless): Li-Ion 3250 mAh; up to 80,000 scans per charge; wireless charging system
Durability: Drop resistant to 1.8 m / 6 ft; IP52 sealing; ESD protection 16 kV
Operating Temperature: 0 °C to 50 °C (32 °F to 122 °F)
Dimensions: 16.6 × 6.8 × 10.9 cm (6.5 × 2.7 × 4.3 in)
Weight: 161 g (corded); 235 g (cordless incl. battery)
Colors: White with green details (Healthcare version)
